Navigator Field

Eastern Shelf of Midland Basin

Burk-Gunn Oil Co.

Dickens County, Texas, USA

Producing reservoir

L Permian Tannehill Ss

Approximate depth below surface

1200 feet (365 m)

Development techniques

Subsurface geology, Exploration geochemistry, Dipmeter

Production to date

About 3 MMB Oil

Current status

Operated by Burk-Gunn Oil Co.



Navigator field was discovered using integrated modeling.



Geomorphology, subsurface geology, near-surface geochemistry, electric logs, sidewall cores, and FMS-FMI dipmeter played important roles in discovery and development of this stratigraphic sandstone oil reservoir.

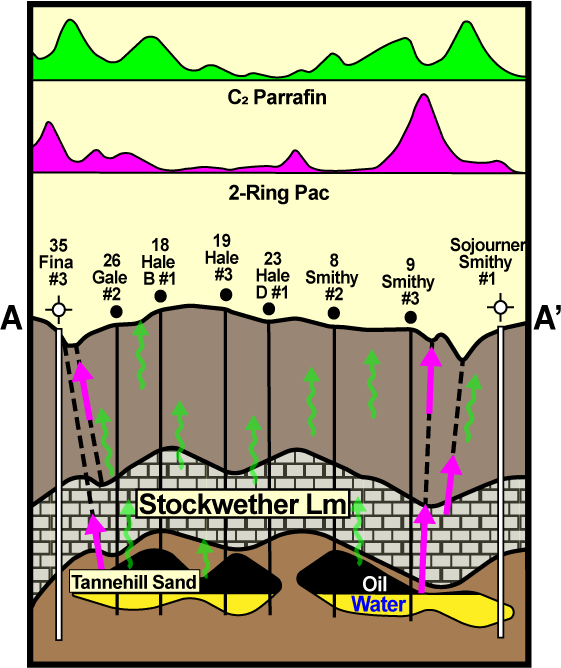

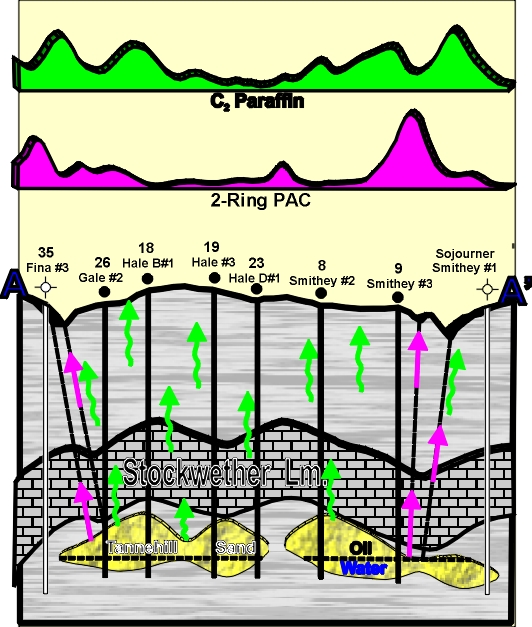

Profile A-A' schematically shows integration results


Navigator Cross Section

Findings of this study were:




• The complex sandstone reservoirs were variable thickness and discontinuous.




• Surface water channels (creeks) were apparent surface expressions of fractures or faults.




• Hydrocarbon conduction to the surface by fractures was indicated by high concentrations of 2-Ring PAC (as naphthalene) near field limits.




• C2 Paraffin (ethane) data showed high concentrations over apparent fractures and also elevated concentrations over the productive reservoir.



Details of this study were reported in "How Integrated Modeling Assisted with Navigator Find, Midland Basin Eastern Shelf. Click on the paper title or Contact Us for a free hardcopy reprint.



Reference: R. A. Cannon, G.K. Rice, and J. Q. Belt, Jr., 2001, "How Integrated Modeling Assisted with Navigator Find, Midland Basin Eastern Shelf", Oil & Gas Journal, July 9, 2001
